| Michael Abrash's Graphics Programming Black Book, Special Edition | Michael Abrash | 1997-07-01 | 1576101746 | The Coriolis Group | Web and Software Development: Game Development,Web and Software Development: Graphics and Multimedia Development | 14 | 260-277 |
Chapter 14\
Boyer-Moore String Searching
Optimizing a Pretty Optimum Search Algorithm
When you seem to be stumped, stop for a minute and think. All the information you need may be right in front of your nose if you just look at things a little differently. Here's a case in point:
When I was in college, I used to stay around campus for the summer. Oh, I'd take a course or two, but mostly it was an excuse to hang out and have fun. In that spirit, my girlfriend, Adrian (not my future wife, partly for reasons that will soon become apparent), bussed in to spend a week, sharing a less-than-elegant $150 per month apartment with me and, by necessity, my roommate.
Our apartment was pretty much standard issue for two male college students; maybe even a cut above. The dishes were usually washed, there was generally food in the refrigerator, and nothing larger than a small dog had taken up permanent residence in the bathroom. However, there was one sticking point (literally): the kitchen floor. This floor—standard tile, with a nice pattern of black lines on an off-white background (or so we thought)—had never been cleaned. By which I mean that I know for a certainty that we had never cleaned it, but I suspect that it had in fact not been cleaned since the Late Jurassic, or possibly earlier. Our feet tended to stick to it; had the apartment suddenly turned upside-down, I think we'd all have been hanging from the ceiling.
One day, my roommate and I returned from a pick-up basketball game. Adrian, having been left to her own devices for a couple of hours, had apparently kept herself busy. "Notice anything?" she asked, with an edge to her voice that suggested we had damned well better.
"Uh, you cooked dinner?" I guessed. "Washed the dishes? Had your hair done?" My roommate was equally without a clue.
She stamped her foot (really; the only time I've ever seen it happen), and said, "No, you jerks! The kitchen floor! Look at the floor! I cleaned it!"
The floor really did look amazing. It was actually all white; the black lines had been grooves filled with dirt. We assured her that it looked terrific, it just wasn't that obvious until you knew to look for it; anyone would tell you that it wasn't the kind of thing that jumped out at you, but it really was great, no kidding. We had almost smoothed things over, when a friend walked in, looked around with a start, and said, "Hey! Did you guys put in a new floor?"
As I said, sometimes everything you need to know is right in front of your nose. Which brings us to Boyer-Moore string searching.
String Searching Refresher
I've discussed string searching earlier in this book, in Chapters 5 and
9. You may want to refer back to these chapters for some background on
string searching in general. I'm also going to use some of the code from
that chapter as part of this chapter's test suite. For further
information, you may want to refer to the discussion of string searching
in the excellent Algorithms in C, by Robert Sedgewick
(Addison-Wesley), which served as the primary reference for this
chapter. (If you look at Sedgewick, be aware that in the Boyer-Moore
listing on page 288, there is a mistake: "j > 0" in the for loop
should be "j >= 0," unless I'm missing something.)
String searching is the simple matter of finding the first occurrence of
a particular sequence of bytes (the pattern) within another sequence of
bytes (the buffer). The obvious, brute-force approach is to try every
possible match location, starting at the beginning of the buffer and
advancing one position after each mismatch, until either a match is
found or the buffer is exhausted. There's even a nifty string
instruction, REPZ CMPS, that's perfect for comparing the pattern to
the contents of the buffer at each location. What could be simpler?
We have some important information that we're not yet using, though.
Typically, the buffer will contain a wide variety of bytes. Let's assume
that the buffer contains text, in which case there will be dozens of
different characters; and although the distribution of characters won't
usually be even, neither will any one character constitute half the
buffer, or anything close. A reasonable conclusion is that the first
character of the pattern will rarely match the first character of the
buffer location currently being checked. This allows us to use the
speedy REPNZ SCASB to whiz through the buffer, eliminating most
potential match locations with single repetitions of SCASB. Only
when that first character does (infrequently) match must we drop back to
the slower REPZ CMPS approach.
It's important to understand that we're assuming that the buffer is typical text. That's what I meant at the outset, when I said that the information you need may be under your nose.
Formally, you don't know a blessed thing about the search buffer, but experience, common sense, and your knowledge of the application give you a great deal of useful, if somewhat imprecise, information.
If the buffer contains the letter ‘A' repeated 1,000 times, followed by
the letter ‘B,' then the REPNZ SCASB/REPZ CMPS approach will be much
slower than the brute-force REPZ CMPS approach when searching for
the pattern "AB," because REPNZ SCASB would match at every buffer
location. You could construct a horrendous worst-case scenario for
almost any good optimization; the key is understanding the usual
conditions under which your code will work.
As discussed in Chapter 9, we also know that certain characters have
lower probabilities of matching than others. In a normal buffer, ‘T'
will match far more often than ‘X.' Therefore, if we use REPNZ SCASB
to scan for the least common letter in the search string, rather than
the first letter, we'll greatly decrease the number of times we have to
drop back to REPZ CMPS, and the search time will become very close
to the time it takes REPNZ SCASB to go from the start of the buffer
to the match location. If the distance to the first match is N bytes,
the least-common REPNZ SCASB approach will take about as long as N
repetitions of REPNZ SCASB.
At this point, we're pretty much searching at the speed of REPNZ SCASB. On the x86, there simply is no faster way to test each
character in turn. In order to get any faster, we'd have to check fewer
characters—but we can't do that and still be sure of finding all
matches. Can we?
Actually, yes, we can.
The Boyer-Moore Algorithm
All our a priori knowledge of string searching is stated above, but there's another sort of knowledge—knowledge that's generated dynamically. As we search through the buffer, we acquire information each time we check for a match. One sort of information that we acquire is based on partial matches; we can often skip ahead after partial matches because (take a deep breath!) by partially matching, we have already implicitly done a comparison of the partially matched buffer characters with all possible pattern start locations that overlap those partially-matched bytes.
If that makes your head hurt, it should—and don't worry. This line of thinking, which is the basis of the Knuth-Morris-Pratt algorithm and half the basis of the Boyer-Moore algorithm, is what gives Boyer-Moore its reputation for inscrutability. That reputation is well deserved for this aspect (which I will not discuss further in this book), but there's another part of Boyer-Moore that's easily understood, easily implemented, and highly effective.
Consider this: We're searching for the pattern "ABC," beginning the search at the start (offset 0) of a buffer containing "ABZABC." We match on ‘A,' we match on ‘B,' and we mismatch on ‘C'; the buffer contains a ‘Z' in this position. What have we learned? Why, we've learned not only that the pattern doesn't match the buffer starting at offset 0, but also that it can't possibly match starting at offset 1 or offset 2, either! After all, there's a ‘Z' in the buffer at offset 2; since the pattern doesn't contain a single ‘Z,' there's no way that the pattern can match starting at any location from which it would span the ‘Z' at offset 2. We can just skip straight from offset 0 to offset 3 and continue, saving ourselves two comparisons.
Unfortunately, this approach only pays off big when a near-complete
partial match is found; if the comparison fails on the first pattern
character, as often happens, we can only skip ahead 1 byte, as usual.
Look at it differently, though: What if we compare the pattern starting
with the last (rightmost) byte, rather than the first (leftmost) byte?
In other words, what if we compare from high memory toward low, in the
direction in which string instructions go after the STD instruction?
After all, we're comparing one set of bytes (the pattern) to another set
of bytes (a portion of the buffer); it doesn't matter in the least in
what order we compare them, so long as all the bytes in one set are
compared to the corresponding bytes in the other set.
We learn nothing new from a mismatch on the leftmost character, except
that the pattern can't match starting at that location. A mismatch on
the rightmost character, however, tells us about the possibilities of
the pattern matching starting at every buffer location from which the
pattern spans the mismatch location. If the mismatched character in the
buffer doesn't appear in the pattern, then we've just eliminated not one
potential match, but as many potential matches as there are characters
in the pattern; that's how many locations there are in the buffer that
might have matched, but have just been shown not to, because they
overlap the mismatched character that doesn't belong in the pattern. In
this case, we can skip ahead by the full pattern length in the buffer!
This is how we can outperform even REPNZ SCASB; REPNZ SCASB has to
check every byte in the buffer, but Boyer-Moore doesn't.

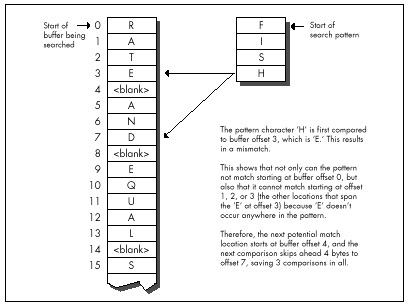

Figure 14.1 illustrates the operation of a Boyer-Moore search when the rightcharacter of the search pattern (which is the first character that's compared at each location because we're comparing backwards) mismatches with a buffer character that appears nowhere in the pattern. Figure 14.2 illustrates the operation of a partial match when the mismatch occurs with a character that's not a pattern member. In this case, we can only skip ahead past the mismatch location, resulting in an advance of fewer bytes than the pattern length, and potentially as little as the same single byte distance by which the standard search approach advances.
What if the mismatch occurs with a buffer character that does occur in the pattern? Then we can't skip past the mismatch location, but we can skip to whatever location aligns the rightmost occurrence of that character in the pattern with the mismatch location, as shown in Figure 14.3.
Basically, we exercise our right as members of a free society to compare strings in whichever direction we choose, and we choose to do so right to left, rather than the more intuitive left to right. Whenever we find a mismatch, we see what we can learn from the buffer character that failed to match the pattern. Imagine that we move the pattern to the right across the mismatch location until we find a start location that the mismatch does not eliminate as a possible match for the pattern. If the mismatch character doesn't appear in the pattern, the pattern can move clear past the mismatch location. Otherwise, the pattern moves until a matching pattern byte lies atop the mismatch. That's all there is to it!
Boyer-Moore: The Good and the Bad
The worst case for this version of Boyer-Moore is that the pattern mismatches on the leftmost character—the last character compared—every time. Again, not very likely, but it is true that this version of Boyer-Moore performs better as there are fewer and shorter partial matches; ideally, the rightmost character would never match until the full match location was reached. Longer patterns, which make for longer skips, help Boyer-Moore, as does a long distance to the match location, which helps diffuse the overhead of building the table of distances to skip ahead on all the possible mismatch values.
The best case for Boyer-Moore is good indeed: About N/M comparisons are required, where N is the buffer length and M is the pattern length. This reflects the ability of Boyer-Moore to skip ahead by a full pattern length on a complete mismatch.
How fast is Boyer-Moore? Listing 14.1 is a C implementation of
Boyer-Moore searching; Listing 14.2 is a test-bed program that searches
up to the first 32K of a file for a pattern. Table 14.1 (all times
measured with Turbo Profiler on a 20 MHz cached 386, searching a
modified version of the text of this chapter) shows that this
implementation is generally much slower than REPNZ SCASB, although
it does come close when searching for long patterns. Listing 14.1 is
designed primarily to make later assembly implemenmore comprehensible,
rather than faster; Sedge's implementation uses arrays rather than
pointers, is a great deal more compact and very clever, and may be
somewhat faster. Regardless, the far superior performance of REPNZ SCASB clearly indicates that assembly language is in order at this
point.
| "g;" | "Yogi" | "igoY" | "Adrian" | "Conclusion" | "You don't know what you know" | |
|---|---|---|---|---|---|---|
| Searching approach | (16K) | (16K) | (16K) | (<1K) | (16K) | (16K) |
| REPNZ SCASB on first char a (Listing 9.1) | 8.2 | 7.5 | 9.7 | 0.4 | 7.4 | 8.1 |
| REPNZ SCASB on least common char (Listing 9.2) | 7.6 | 7.5 | 7.5 | 0.5 | 7.5 | 7.5 |
| Boyer-Moore in C (Listing 14.1) | 71.0 | 38.4 | 37.7 | 1.8 | 18.2 | 9.2 |
| Standard Boyer-Moore in ASM (code not shown) | 38.5 | 21.0 | 20.5 | 0.8 | 9.4 | 4.8 |
| Quick handling of first mismatch Boyer-Moore in ASM (Listing 14.3) | 14.1 | 8.9 | 7.7 | 0.4 | 4.0 | 2.0 |
| <=255 pattern length + sentinelBoyer-Moore in ASM (Listing 14.4) | 8.1 | 5.2 | 4.6 | 0.3 | 2.6 | 1.2 |
Table: Table 14.1 Comparison of searching techniques.
Search pattern (approximate distance searched before match is shown in
parentheses).
Times are in milliseconds; shorter is better.
The entry "Standard Boyer-Moore in ASM" in Table 14.1 refers to
straight-forward hand optimization of Listing 14.1, code that is not
included in this chapter for the perfectly good reason that it is slower
in most cases than REPNZ SCASB. I say this casually now, but not so
yesterday, when I had all but concluded that Boyer-Moore was simply
inferior on the x86, due to two architectural quirks: the string
instructions and slow branch. I had even coined a neat phrase for it:
Architecture is destiny. Has a nice ring, doesn't it?
LISTING 14.1 L14-1.C
/* Searches a buffer for a specified pattern. In case of a mismatch,
uses the value of the mismatched byte to skip across as many
potential match locations as possible (partial Boyer-Moore).
Returns start offset of first match searching forward, or NULL if
no match is found.
Tested with Borland C++ in C mode and the small model. */
#include <stdio.h>
unsigned char * FindString(unsigned char * BufferPtr,
unsigned int BufferLength, unsigned char * PatternPtr,
unsigned int PatternLength)
{
unsigned char * WorkingPatternPtr, * WorkingBufferPtr;
unsigned int CompCount, SkipTable[256], Skip, DistanceMatched;
int i;
/* Reject if the buffer is too small */
if (BufferLength < PatternLength) return(NULL);
/* Return an instant match if the pattern is 0-length */
if (PatternLength == 0) return(BufferPtr);
/* Create the table of distances by which to skip ahead on
mismatches for every possible byte value */
/* Initialize all skips to the pattern length; this is the skip
distance for bytes that don't appear in the pattern */
for (i = 0; i < 256; i++) SkipTable[i] = PatternLength;
/*Set the skip values for the bytes that do appear in the pattern
to the distance from the byte location to the end of the
pattern. When there are multiple instances of the same byte,
the rightmost instance's skip value is used. Note that the
rightmost byte of the pattern isn't entered in the skip table;
if we get that value for a mismatch, we know for sure that the
right end of the pattern has already passed the mismatch
location, so this is not a relevant byte for skipping purposes */
for (i = 0; i < (PatternLength - 1); i++)
SkipTable[PatternPtr[i]] = PatternLength - i - 1;
/* Point to rightmost byte of the pattern */
PatternPtr += PatternLength - 1;
/* Point to last (rightmost) byte of the first potential pattern
match location in the buffer */
BufferPtr += PatternLength - 1;
/* Count of number of potential pattern match locations in
buffer */
BufferLength -= PatternLength - 1;
/* Search the buffer */
while (1) {
/* See if we have a match at this buffer location */
WorkingPatternPtr = PatternPtr;
WorkingBufferPtr = BufferPtr;
CompCount = PatternLength;
/* Compare the pattern and the buffer location, searching from
high memory toward low (right to left) */
while (*WorkingPatternPtr— == *WorkingBufferPtr—) {
/* If we've matched the entire pattern, it's a match */
if (-CompCount == 0)
/* Return a pointer to the start of the match location */
return(BufferPtr - PatternLength + 1);
}
/* It's a mismatch; let's see what we can learn from it */
WorkingBufferPtr++; /* point back to the mismatch location */
/* # of bytes that did match */
DistanceMatched = BufferPtr - WorkingBufferPtr;
/*If, based on the mismatch character, we can't even skip ahead
as far as where we started this particular comparison, then
just advance by 1 to the next potential match; otherwise,
skip ahead from the mismatch location by the skip distance
for the mismatch character */
if (SkipTable[*WorkingBufferPtr] <= DistanceMatched)
Skip = 1; /* skip doesn't do any good, advance by 1 */
else
/* Use skip value, accounting for distance covered by the
partial match */
Skip = SkipTable[*WorkingBufferPtr] - DistanceMatched;
/* If skipping ahead would exhaust the buffer, we're done
without a match */
if (Skip >= BufferLength) return(NULL);
/* Skip ahead and perform the next comparison */
BufferLength -= Skip;
BufferPtr += Skip;
}
}
LISTING 14.2 L14-2.C
/* Program to exercise buffer-search routines in Listings 14.1 & 14.3.
(Must be modified to put copy of pattern as sentinel at end of the
search buffer in order to be used with Listing 14.4.) */
#include <stdio.h>
#include <string.h>
#include <fcntl.h>
#define DISPLAY_LENGTH 40
#define BUFFER_SIZE 0x8000
extern unsigned char * FindString(unsigned char *, unsigned int,
unsigned char *, unsigned int);
void main(void);
void main() {
unsigned char TempBuffer[DISPLAY_LENGTH+1];
unsigned char Filename[150], Pattern[150], *MatchPtr, *TestBuffer;
int Handle;
unsigned int WorkingLength;
printf("File to search:");
gets(Filename);
printf("Pattern for which to search:");
gets(Pattern);
if ( (Handle = open(Filename, O_RDONLY | O_BINARY)) == -1 ) {
printf("Can't open file: %s\n", Filename); exit(1);
}
/* Get memory in which to buffer the data */
if ( (TestBuffer=(unsigned char *)malloc(BUFFER_SIZE+1)) == NULL) {
printf("Can't get enough memory\n"); exit(1);
}
/* Process a BUFFER_SIZE chunk */
if ( (int)(WorkingLength =
read(Handle, TestBuffer, BUFFER_SIZE)) == -1 ) {
printf("Error reading file %s\n", Filename); exit(1);
}
TestBuffer[WorkingLength] = 0; /* 0-terminate buffer for printf */
/* Search for the pattern and report the results */
if ((MatchPtr = FindString(TestBuffer, WorkingLength, Pattern,
(unsigned int) strlen(Pattern))) == NULL) {
/* Pattern wasn't found */
printf("\"%s\" not found\n", Pattern);
} else {
/* Pattern was found. Zero-terminate TempBuffer; strncpy
won't do it if DISPLAY_LENGTH characters are copied */
TempBuffer[DISPLAY_LENGTH] = 0;
printf("\"%s\" found. Next %d characters at match:\n\"%s\"\n",
Pattern, DISPLAY_LENGTH,
strncpy(TempBuffer, MatchPtr, DISPLAY_LENGTH));
}
exit(0);
}
Well, architecture carries a lot of weight, but it sure as heck isn't
destiny. I had simply fallen into the trap of figuring that the
algorithm was so clever that I didn't have to do any thinking myself.
The path leading to REPNZ SCASB from the original brute-force
approach of REPZ CMPSB at every location had been based on my
observation that the first character comparison at each buffer location
usually fails. Why not apply the same concept to Boyer-Moore? Listing
14.3 is just like the standard implementation—except that it's optimized
to handle a first-comparison mismatch as quickly as possible in the loop
at QuickSearchLoop, much as REPNZ SCASB optimizes
first-comparison mismatches for the brute-force approach. The results in
Table 14.1 speak for themselves; Listing 14.3 is more than twice as fast
as what I assure you was already a nice, tight assembly implementation
(and unrolling QuickSearchLoop could boost performance by up to 10
percent more). Listing 14.3 is also four times faster than REPNZ SCASB in one case.
LISTING 14.3 L14-3.ASM
; Searches a buffer for a specified pattern. In case of a mismatch,
; uses the value of the mismatched byte to skip across as many
; potential match locations as possible (partial Boyer-Moore).
; Returns start offset of first match searching forward, or NULL if
; no match is found.
; Tested with TASM.
; C near-callable as:
; unsigned char * FindString(unsigned char * BufferPtr,
; unsigned int BufferLength, unsigned char * PatternPtr,
; unsigned int PatternLength);
parms struc
dw 2 dup(?) ;pushed BP & return address
BufferPtr dw ? ;pointer to buffer to be searched
BufferLength dw ? ;# of bytes in buffer to be searched
PatternPtr dw ? ;pointer to pattern for which to search
PatternLength dw ? ;length of pattern for which to search
parms ends
.model small
.code
public _FindString
_FindString proc near
cld
push bp ;preserve caller's stack frame
mov bp,sp ;point to our stack frame
push si ;preserve caller's register variables
push di
sub sp,256*2 ;allocate space for SkipTable
; Create the table of distances by which to skip ahead on mismatches
; for every possible byte value. First, initialize all skips to the
; pattern length; this is the skip distance for bytes that don't
; appear in the pattern.
mov ax,[bp+PatternLength]
and ax,ax ;return an instant match if the pattern is
jz InstantMatch ;0-length
mov di,ds
mov es,di ;ES=DS=SS
mov di,sp ;point to SkipBuffer
mov cx,256
rep stosw
dec ax ;from now on, we only need
mov [bp+PatternLength],ax ; PatternLength - 1
; Point to last (rightmost) byte of first potential pattern match
; location in buffer.
add [bp+BufferPtr],ax
; Reject if buffer is too small, and set the count of the number of
; potential pattern match locations in the buffer.
sub [bp+BufferLength],ax
jbe NoMatch
; Set the skip values for the bytes that do appear in the pattern to
; the distance from the byte location to the end of the pattern.
; When there are multiple instances of the same byte, the rightmost
; instance's skip value is used. Note that the rightmost byte of the
; pattern isn't entered in the skip table; if we get that value for
; a mismatch, we know for sure that the right end of the pattern has
; already passed the mismatch location, so this is not a relevant byte
; for skipping purposes.
mov si,[bp+PatternPtr] ;point to start of pattern
and ax,ax ;are there any skips to set?
jz SetSkipDone ;no
mov di,sp ;point to SkipBuffer
SetSkipLoop:
sub bx,bx ;prepare for word addressing off byte value
mov bl,[si] ;get the next pattern byte
inc si ;advance the pattern pointer
shl bx,1 ;prepare for word lookup
mov [di+bx],ax ;set the skip value when this byte value is
; the mismatch value in the buffer
dec ax
jnz SetSkipLoop
SetSkipDone:
mov dl,[si] ;DL=rightmost pattern byte from now on
dec si ;point to next-to-rightmost byte of pattern
mov [bp+PatternPtr],si ; from now on
; Search the buffer.
std ;for backward REPZ CMPSB
mov di,[bp+BufferPtr] ;point to first search location
mov cx,[bp+BufferLength] ;# of match locations to check
SearchLoop:
mov si,sp ;point SI to SkipTable
; Skip through until there's a match for the rightmost pattern byte.
QuickSearchLoop:
mov bl,[di] ;rightmost buffer byte at this location
cmp dl,bl ;does it match the rightmost pattern byte?
jz FullCompare ;yes, so keep going
sub bh,bh ;convert to a word
add bx,bx ;prepare for look-up in SkipTable
mov ax,[si+bx] ;get skip value from skip table for this
; mismatch value
add di,ax ;BufferPtr += Skip;
sub cx,ax ;BufferLength -= Skip;
ja QuickSearchLoop ;continue if any buffer left
jmp short NoMatch
; Return a pointer to the start of the buffer (for 0-length pattern).
align 2
InstantMatch:
mov ax,[bp+BufferPtr]
jmp short Done
; Compare the pattern and the buffer location, searching from high
; memory toward low (right to left).
align 2
FullCompare:
mov [bp+BufferPtr],di ;save the current state of
mov [bp+BufferLength],cx ; the search
mov cx,[bp+PatternLength] ;# of bytes yet to compare
jcxz Match ;done if only one character
mov si,[bp+PatternPtr] ;point to next-to-rightmost bytes
dec di ; of buffer location and pattern
repz cmpsb ;compare the rest of the pattern
jz Match ;that's it; we've found a match
; It's a mismatch; let's see what we can learn from it.
inc di ;compensate for 1-byte overrun of REPZ CMPSB;
; point to mismatch location in buffer
; # of bytes that did match.
mov si,[bp+BufferPtr]
sub si,di
; If, based on the mismatch character, we can't even skip ahead as far
; as where we started this particular comparison, then just advance by
; 1 to the next potential match; otherwise, skip ahead from this
; comparison location by the skip distance for the mismatch character,
; less the distance covered by the partial match.
sub bx,bx ;prepare for word addressing off byte value
mov bl,[di] ;get the value of the mismatch byte in buffer
add bx,bx ;prepare for word look-up
add bx,sp ;SP points to SkipTable
mov cx,[bx] ;get the skip value for this mismatch
mov ax,1 ;assume we'll just advance to the next
; potential match location
sub cx,si ;is the skip far enough to be worth taking?
jna MoveAhead ;no, go with the default advance of 1
mov ax,cx ;yes; this is the distance to skip ahead from
; the last potential match location checked
MoveAhead:
; Skip ahead and perform the next comparison, if there's any buffer
; left to check.
mov di,[bp+BufferPtr]
add di,ax ;BufferPtr += Skip;
mov cx,[bp+BufferLength]
sub cx,ax ;BufferLength -= Skip;
ja SearchLoop ;continue if any buffer left
; Return a NULL pointer for no match.
align 2
NoMatch:
sub ax,ax
jmp short Done
; Return start of match in buffer (BufferPtr - (PatternLength - 1)).
align 2
Match:
mov ax,[bp+BufferPtr]
sub ax,[bp+PatternLength]
Done:
cld ;restore default direction flag
add sp,256*2 ;deallocate space for SkipTable
pop di ;restore caller's register variables
pop si
pop bp ;restore caller's stack frame
ret
_FindString endp
end
Table 14.1 represents a limited and decidedly unscientific comparison of
searching techniques. Nonetheless, the overall trend is clear: For all
but the shortest patterns, well-implemented Boyer-Moore is generally as
good as or better than—sometimes much better than—brute-force
searching. (For short patterns, you might want to use REPNZ SCASB,
thereby getting the best of both worlds.)
Know your data and use your smarts. Don't stop thinking just because you're implementing a big-name algorithm; you know more than it does.
Further Optimization of Boyer-Moore
We can do substantially better yet than Listing 14.3 if we're willing to
accept tighter limits on the data. Limiting the length of the
searched-for pattern to a maximum of 255 bytes allows us to use the
XLAT instruction and generally tighten the critical loop. (Be aware,
however, that XLAT is a relatively expensive instruction on the 486
and Pentium.) Putting a copy of the searched-for string at the end of
the search buffer as a sentinel, so that the search never fails, frees
us from counting down the buffer length, and makes it easy to unroll the
critical loop. Listing 14.4, which implements these optimizations, is
about 60 percent faster than Listing 14.3.
LISTING 14.4 L14-4.ASM
; Searches a buffer for a specified pattern. In case of a mismatch,
; uses the value of the mismatched byte to skip across as many
; potential match locations as possible (partial Boyer-Moore).
; Returns start offset of first match searching forward, or NULL if
; no match is found.
; Requires that the pattern be no longer than 255 bytes, and that
; there be a match for the pattern somewhere in the buffer (ie., a
; copy of the pattern should be placed as a sentinel at the end of
; the buffer if the pattern isn't already known to be in the buffer).
; Tested with TASM.
; C near-callable as:
; unsigned char * FindString(unsigned char * BufferPtr,
; unsigned int BufferLength, unsigned char * PatternPtr,
; unsigned int PatternLength);
parms struc
dw 2 dup(?) ;pushed BP & return address
BufferPtr dw ? ;pointer to buffer to be searched
BufferLength dw ? ;# of bytes in buffer to be searched
; (not used, actually)
PatternPtr dw ? ;pointer to pattern for which to search
; (pattern *MUST* exist in the buffer)
PatternLength dw ? ;length of pattern for which to search (must
; be <= 255)
parms ends
.model small
.code
public _FindString
_FindString proc near
cld
push bp ;preserve caller's stack frame
mov bp,sp ;point to our stack frame
push si ;preserve caller's register variables
push di
sub sp,256 ;allocate space for SkipTable
; Create the table of distances by which to skip ahead on mismatches
; for every possible byte value. First, initialize all skips to the
; pattern length; this is the skip distance for bytes that don't
; appear in the pattern.
mov di,ds
mov es,di ;ES=DS=SS
mov di,sp ;point to SkipBuffer
mov al,byte ptr [bp+PatternLength]
and al,al ;return an instant match if the pattern is
jz InstantMatch ; 0-length
mov ah,al
mov cx,256/2
rep stosw
mov ax,[bp+PatternLength]
dec ax ;from now on, we only need
mov [bp+PatternLength],ax ; PatternLength - 1
; Point to rightmost byte of first potential pattern match location
; in buffer.
add [bp+BufferPtr],ax
; Set the skip values for the bytes that do appear in the pattern to
; the distance from the byte location to the end of the pattern.
mov si,[bp+PatternPtr] ;point to start of pattern
and ax,ax ;are there any skips to set?
jz SetSkipDone ;no
mov di,sp ;point to SkipBuffer
sub bx,bx ;prepare for word addressing off byte value
SetSkipLoop:
mov bl,[si] ;get the next pattern byte
inc si ;advance the pattern pointer
mov [di+bx],al ;set the skip value when this byte value is
;the mismatch value in the buffer
dec ax
jnz SetSkipLoop
SetSkipDone:
mov dl,[si] ;DL=rightmost pattern byte from now on
dec si ;point to next-to-rightmost byte of pattern
mov [bp+PatternPtr],si ; from now on
; Search the buffer.
std ;for backward REPZ CMPSB
mov di,[bp+BufferPtr] ;point to the first search location
mov bx,sp ;point to SkipTable for XLAT
SearchLoop:
sub ah,ah ;used to convert AL to a word
; Skip through until there's a match for the first pattern byte.
QuickSearchLoop:
; See if we have a match at the first buffer location.
REPT 8 ;unroll loop 8 times to reduce branching
mov al,[di] ;next buffer byte
cmp dl,al ;does it match the pattern?
jz FullCompare ;yes, so keep going
xlat ;no, look up the skip value for this mismatch
add di,ax ;BufferPtr += Skip;
ENDM
jmp QuickSearchLoop
; Return a pointer to the start of the buffer (for 0-length pattern).
align 2
InstantMatch:
mov ax,[bp+BufferPtr]
jmp short Done
; Compare the pattern and the buffer location, searching from high
; memory toward low (right to left).
align 2
FullCompare:
mov [bp+BufferPtr],di ;save the current buffer location
mov cx,[bp+PatternLength] ;# of bytes yet to compare
jcxz Match ;done if there was only one character
dec di ;point to next destination byte to compare (SI
; points to next-to-rightmost source byte)
repz cmpsb ;compare the rest of the pattern
jz Match ;that's it; we've found a match
; It's a mismatch; let's see what we can learn from it.
inc di ;compensate for 1-byte overrun of REPZ CMPSB;
; point to mismatch location in buffer
; # of bytes that did match.
mov si,[bp+BufferPtr]
sub si,di
; If, based on the mismatch character, we can't even skip ahead as far
; as where we started this particular comparison, then just advance by
; 1 to the next potential match; otherwise, skip ahead from this
; comparison location by the skip distance for the mismatch character,
; less the distance covered by the partial match.
mov al,[di] ;get the value of the mismatch byte in buffer
xlat ;get the skip value for this mismatch
mov cx,1 ;assume we'll just advance to the next
; potential match location
sub ax,si ;is the skip far enough to be worth taking?
jna MoveAhead ;no, go with the default advance of 1
mov cx,ax ;yes, this is the distance to skip ahead from
;the last potential match location checked
MoveAhead:
; Skip ahead and perform the next comparison.
mov di,[bp+BufferPtr]
add di,cx ;BufferPtr += Skip;
mov si,[bp+PatternPtr] ;point to the next-to-rightmost
; pattern byte
jmp SearchLoop
; Return start of match in buffer (BufferPtr - (PatternLength - 1)).
align 2
Match:
mov ax,[bp+BufferPtr]
sub ax,[bp+PatternLength]
Done:
cld ;restore default direction flag
add sp,256 ;deallocate space for SkipTable
pop di ;restore caller's register variables
pop si
pop bp ;restore caller's stack frame
ret
_FindString endp
end
Note that Table 14.1 includes the time required to build the skip table
each time FindString is called. This time could be eliminated for
all but the first search when repeatedly searching for a particular
pattern, by building the skip table externally and passing a pointer to
it as a parameter.
Know What You Know
Here we've turned up our nose at a repeated string instruction, we've gone against the grain by comparing backward, and yet we've speeded up our code quite a bit. All this without any restrictions or special requirements (excluding Listing 14.4)—and without any new information. Everything we needed was sitting there all along; we just needed to think to look at it.
As Yogi Berra might put it, "You don't know what you know until you know it."
