Chapter 5\

Crossing the Border {#Heading1}

Searching Files with Restartable Blocks

We just moved. Those three little words should strike terror into the heart of anyone who owns more than a sleeping bag and a toothbrush. Our last move was the usual zoo—and then some. Because the distance from the old house to the new was only five miles, we used cars to move everything smaller than a washing machine. We have a sizable household—cats, dogs, kids, com, you name it—so the moving process took a number of car trips. A large number—33, to be exact. I personally spent about 15 hours just driving back and forth between the two houses. The move took days to complete.

Never again.

You're probably wondering two things: What does this have to do with high-performance programming, and why on earth didn't I rent a truck and get the move over in one or two trips, saving hours of driving? As it happens, the second question answers the first. I didn't rent a truck because it seemed easier and cheaper to use cars—no big truck to drive, no rentals, spread the work out more manageably, and so on.

It wasn't easier, and wasn't even much cheaper. (It costs quite a bit to drive a car 330 miles, to say nothing of the value of 15 hours of my time.) But, at the time, it seemed as though my approach would be easier and cheaper. In fact, I didn't realize just how much time I had wasted driving back and forth until I sat down to write this chapter.

In Chapter 1, I briefly discussed using restartable blocks. This, you might remember, is the process of handling in chunks data sets too large to fit in memory so that they can be processed just about as fast as if they did fit in memory. The restartable block approach is very fast but is relatively difficult to program.

At the opposite end of the spectrum lies byte-by-byte processing, whereby DOS (or, in less extreme cases, a group of library functions) is allowed to do all the hard work, so that you only have to deal with one byte at a time. Byte-by-byte processing is easy to program but can be extremely slow, due to the vast overhead that results from invoking DOS each time a byte must be processed.

Sound familiar? It should. I moved via the byte-by-byte approach, and the overhead of driving back and forth made for miserable performance. Renting a truck (the restartable block approach) would have required more effort and forethought, but would have paid off handsomely.

The easy, familiar approach often has nothing in its favor except that it requires less thinking; not a great virtue when writing high-performance code—or when moving.

And with that, let's look at a fairly complex application of restartable blocks.

Searching for Text

The application we're going to examine searches a file for a specified string. We'll develop a program that will search the file specified on the command line for a string (also specified on the comline), then report whether the string was found or not. (Because the searched-for string is obtained via argv, it can't contain any whitespace characters.)

This is a very limited subset of what search utilities such as grep can do, and isn't really intended to be a generally useful application; the purpose is to provide insight into restartable blocks in particular and optimization in general in the course of developing a search engine. That search engine will, however, be easy to plug into any program, and there's nothing preventing you from using it in a more fruitful context, like searching through a user-selectable file set.

The first point to address in designing our program involves the appropriate text-search approach to use. Literally dozens of workable ways exist to search a file. We can immediately discard all approaches that involve reading any byte of the file more than once, because disk access time is orders of magnitude slower than any data handling performed by our own code. Based on our experience in Chapter 1, we can also discard all approaches that get bytes either one at a time or in small sets from DOS. We want to read big "buffers-full" of bytes at a pop from the searched file, and the bigger the buffer the better—in order to minimize DOS's overhead. A good rough cut is a buffer that will be between 16K and 64K, depending on the exact search approach, 64K being the maximum size because near pointers make for superior performance.

So we know we want to work with a large buffer, filling it as infrequently as possible. Now we have to figure out how to search through a file by loading it into that large buffer in chunks. To accomplish this, we have to know how we want to do our searching, and that's not immediately obvious. Where do we begin?

Well, it might be instructive to consider how we would search if our search involved only one buffer, already resident in memory. In other words, suppose we don't have to bother with file handling at all, and further suppose that we don't have to deal with searching through multiple blocks. After all, that's a good description of the all-important inner loop of our searching program, where the program will spend virtually all of its time (aside from the unavoidable disk access overhead).

Avoiding the String Trap

The easiest approach would be to use a C/C++ library function. The closest match to what we need is strstr(), which searches one string for the first occurrence of a second string. However, while strstr() would work, it isn't ideal for our purposes. The problem is this: Where we want to search a fixed-length buffer for the first occurrence of a string, strstr() searches a string for the first occurrence of another string.

We could put a zero byte at the end of our buffer to allow strstr() to work, but why bother? The strstr() function must spend time either checking for the end of the string being searched or determining the length of that string—wasted effort given that we already know exactly how long our search buffer is. Even if a given strstr() implementation is well-written, its performance will suffer, at least for our application, from unnecessary overhead.

This illustrates why you shouldn't think of C/C++ library functions as black boxes; understand what they do and try to figure out how they do it, and relate that to their performance in the context you're interested in.

Brute-Force Techniques

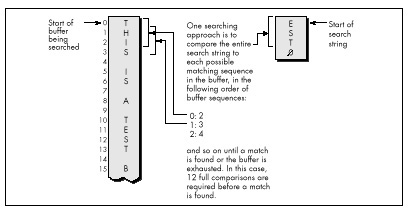

Given that no C/C++ library function meets our needs precisely, an obvious alternative approach is the brute-force technique that uses memcmp() to compare every potential matching location in the buffer to the string we're searching for, as illustrated in Figure 5.1.

By the way, we could, of course, use our own code, working with pointers in a loop, to perform the comparison in place of memcmp(). But memcmp() will almost certainly use the very fast REPZ CMPS instruction. However, never assume! It wouldn't hurt to use a debugger to check out the actual machine-code implementation of memcmp() from your compiler. If necessary, you could always write your own assembly language implementation of memcmp().

Invoking memcmp() for each potential match location works, but entails considerable overhead. Each comparison requires that parameters be pushed and that a call to and return from memcmp() be performed, along with a pass through the comparison loop. Surely there's a better way!

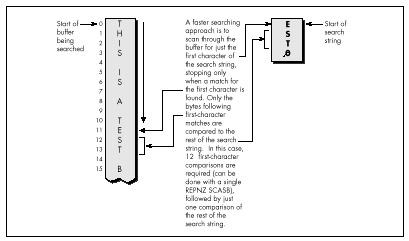

Indeed there is. We can eliminate most calls to memcmp() by performing a simple test on each potential match location that will reject most such locations right off the bat. We'll just check whether the first character of the potentially matching buffer location matches the first character of the string we're searching for. We could make this check by using a pointer in a loop to scan the buffer for the next match for the first character, stopping to check for a match with the rest of the string only when the first character matches, as shown in Figure 5.2.

Using memchr()

There's yet a better way to implement this approach, however. Use the memchr() function, which does nothing more or less than find the next occurrence of a specified character in a fixed-length buffer (presumably by using the extremely efficient REPNZ SCASB instruction, although again it wouldn't hurt to check). By using memchr() to scan for potential matches that can then be fully tested with memcmp(), we can build a highly efficient search engine that takes good advantage of the information we have about the buffer being searched and the string we're searching for. Our engine also relies heavily on repeated string instructions, assuming that the memchr() and memcmp() library functions are properly coded.

We're going to go with the this approach in our file-searching program; the only trick lies in deciding how to integrate this approach with restartable blocks in order to search through files larger than our buffer. This certainly isn't the fastest-possible searching algorithm; as one example, the Boyer-Moore algorithm, which cleverly eliminates many buffer locations as potential matches in the process of checking preceding locations, can be considerably faster. However, the Boyer-Moore algorithm is quite complex to understand and implement, and would distract us from our main focus, restartable blocks, so we'll save it for a later chapter (Chapter 14, to be precise). Besides, I suspect you'll find the approach we'll use to be fast enough for most purposes.

Now that we've selected a searching approach, let's integrate it with file handling and searching through multiple blocks. In other words, let's make it restartable.

Making a Search Restartable

As it happens, there's no great trick to putting the pieces of this search program together. Basically, we'll read in a buffer of data (we'll work with 16K at a time to avoid signed overflow problems with integers), search it for a match with the memchr()/memcmp() engine described, and exit with a "string found" response if the desired string is found.

Otherwise, we'll load in another buffer full of data from the file, search it, and so on. The only trick lies in handling potentially matching sequences in the file that start in one buffer and end in the next—that is, sequences that span buffers. We'll handle this by copying the unchecked bytes at the end of one buffer to the start of the next and reading that many fewer bytes the next time we fill the buffer.

The exact number of bytes to be copied from the end of one buffer to the start of the next is the length of the searched-for string minus 1, since that's how many bytes at the end of the buffer can't be checked as possible matches (because the check would run off the end of the buffer).

That's really all there is to it. Listing 5.1 shows the file-searching program. As you can see, it's not particularly complex, although a few fairly opaque lines of code are required to handle merging the end of one block with the start of the next. The code that searches a single block—the function SearchForString()—is simple and compact (as it should be, given that it's by far the most heavily-executed code in the listing).

Listing 5.1 nicely illustrates the core concept of restartable blocks: Organize your program so that you can do your processing within each block as fast as you could if there were only one block—which is to say at top speed—and make your blocks as large as possible in order to minimize the overhead associated with going from one block to the next.

LISTING 5.1 SEARCH.C

/* Program to search the file specified by the first command-line
 * argument for the string specified by the second command-line
 * argument. Performs the search by reading and searching blocks
 * of size BLOCK_SIZE. */

#include <stdio.h>
#include <fcntl.h>
#include <string.h>
#include <alloc.h>   /* alloc.h for Borland compilers,
                        malloc.h for Microsoft compilers */

#define BLOCK_SIZE  0x4000   /* we'll process the file in 16K blocks */

/* Searches the specified number of sequences in the specified
   buffer for matches to SearchString of SearchStringLength. Note
   that the calling code should already have shortened SearchLength
   if necessary to compensate for the distance from the end of the
   buffer to the last possible start of a matching sequence in the
   buffer.
*/

int SearchForString(unsigned char *Buffer, int SearchLength,
   unsigned char *SearchString, int SearchStringLength)
{
   unsigned char *PotentialMatch;

   /* Search so long as there are potential-match locations
      remaining */
   while ( SearchLength ) {
     /* See if the first character of SearchString can be found */
     if ( (PotentialMatch =
           memchr(Buffer, *SearchString, SearchLength)) == NULL ) {
        break;   /* No matches in this buffer */
     }
      /* The first character matches; see if the rest of the string
         also matches */
      if ( SearchStringLength == 1 ) {
         return(1);  /* That one matching character was the whole
                        search string, so we've got a match */
      }
      else {
         /* Check whether the remaining characters match */
         if ( !memcmp(PotentialMatch + 1, SearchString + 1,
               SearchStringLength - 1) ) {
            return(1);  /* We've got a match */
         }
      }
      /* The string doesn't match; keep going by pointing past the
         potential match location we just rejected */
      SearchLength -= PotentialMatch - Buffer + 1;
      Buffer = PotentialMatch + 1;
   }

   return(0);  /* No match found */
}

main(int argc, char *argv[]) {
   int Done;               /* Indicates whether search is done */
   int Handle;             /* Handle of file being searched */
   int WorkingLength;      /* Length of current block */
   int SearchStringLength; /* Length of string to search for */
   int BlockSearchLength;  /* Length to search in current block */
   int Found;              /* Indicates final search completion
                              status */
   int NextLoadCount;      /* # of bytes to read into next block,
                              accounting for bytes copied from the
                              last block */
   unsigned char *WorkingBlock; /* Block storage buffer */
   unsigned char *SearchString; /* Pointer to the string to search for */
   unsigned char *NextLoadPtr;  /* Offset at which to start loading
                                   the next block, accounting for
                                   bytes copied from the last block */

   /* Check for the proper number of arguments */
   if ( argc != 3 ) {
      printf("usage: search filename search-string\n");
      exit(1);
   }

   /* Try to open the file to be searched */
   if ( (Handle = open(argv[1], O_RDONLY | O_BINARY)) == -1 ) {
      printf("Can't open file: %s\n", argv[1]);
      exit(1);
   }
   /* Calculate the length of text to search for */
   SearchString = argv[2];
   SearchStringLength = strlen(SearchString);
   /* Try to get memory in which to buffer the data */
   if ( (WorkingBlock = malloc(BLOCK_SIZE)) == NULL ) {
      printf("Can't get enough memory\n");
      exit(1);
   }

   /* Load the first block at the start of the buffer, and try to
      fill the entire buffer */
   NextLoadPtr = WorkingBlock;
   NextLoadCount = BLOCK_SIZE;
   Done = 0;      /* Not done with search yet */
   Found = 0;     /* Assume we won't find a match */
   /* Search the file in BLOCK_SIZE chunks */
   do {
      /* Read in however many bytes are needed to fill out the block
         (accounting for bytes copied over from the last block), or
         the rest of the bytes in the file, whichever is less */
      if ( (WorkingLength = read(Handle, NextLoadPtr,
            NextLoadCount)) == -1 ) {
         printf("Error reading file %s\n", argv[1]);
         exit(1);
      }
      /* If we didn't read all the bytes we requested, we're done
         after this block, whether we find a match or not */
      if ( WorkingLength != NextLoadCount ) {
         Done = 1;
      }

      /* Account for any bytes we copied from the end of the last
         block in the total length of this block */
      WorkingLength += NextLoadPtr - WorkingBlock;
      /* Calculate the number of bytes in this block that could
         possibly be the start of a matching sequence that lies
         entirely in this block (sequences that run off the end of
         the block will be transferred to the next block and found
         when that block is searched)
      */
      if ( (BlockSearchLength =
               WorkingLength - SearchStringLength + 1) <= 0 ) {
            Done = 1;  /* Too few characters in this block for
                          there to be any possible matches, so this
                          is the final block and we're done without
                          finding a match
                       */
      }
      else {
         /* Search this block */
         if ( SearchForString(WorkingBlock, BlockSearchLength,
               SearchString, SearchStringLength) ) {
            Found = 1;     /* We've found a match */
            Done = 1;
         }
         else {
            /* Copy any bytes from the end of the block that start
               potentially-matching sequences that would run off
               the end of the block over to the next block */
            if ( SearchStringLength > 1 ) {
               memcpy(WorkingBlock,
                  WorkingBlock+BLOCK_SIZE - SearchStringLength + 1,
                  SearchStringLength - 1);
            }
            /* Set up to load the next bytes from the file after the
               bytes copied from the end of the current block */
            NextLoadPtr = WorkingBlock + SearchStringLength - 1;
            NextLoadCount = BLOCK_SIZE - SearchStringLength + 1;
         }
      }
   } while ( !Done );

   /* Report the results */
   if ( Found ) {
      printf("String found\n");
   } else {
      printf("String not found\n");
   }
   exit(Found);   /* Return the found/not found status as the
                     DOS errorlevel */
}

Interpreting Where the Cycles Go

To boost the overall performance of Listing 5.1, I would normally convert SearchForString() to assembly language at this point. However, I'm not going to do that, and the reason is as important a lesson as any discussion of optimized assembly code is likely to be. Take a moment to examine some interesting performance aspects of the C implementation, and all should become much clearer.

As you'll recall from Chapter 1, one of the important rules for optimization involves knowing when optimization is worth bothering with at all. Another rule involves understanding where most of a program's execution time is going. That's more true for Listing 5.1 than you might think.

When Listing 5.1 is run on a 1 MB assembly source file, it takes about three seconds to find the string "xxxend" (which is at the end of the file) on a 20 MHz 386 machine, with the entire file in a disk cache. If BLOCK_SIZE is trimmed from 16K to 4K, execution time does not increase perceptibly! At 2K, the program slows slightly; it's not until the block size shrinks to 64 bytes that execution time becomes approximately double that of the 16K buffer.

So the first thing we've discovered is that, while bigger blocks do make for the best performance, the increment in performance may not be very large, and might not justify the extra memory required for those larger blocks. Our next discovery is that, even though we read the file in large chunks, most of the execution time of Listing 5.1 is nonetheless spent in executing the read() function.

When I replaced the read() function call in Listing 5.1 with code that simply fools the program into thinking that a 1 MB file is being read, the program ran almost instantaneously—in less than 1/2 second, even when the searched-for string wasn't anywhere to be found. By contrast, Listing 5.1 requires three seconds to run even when searching for a single character that isn't found anywhere in the file, the case in which a single call to memchr() (and thus a single REPNZ SCASB) can eliminate an entire block at a time.

All in all, the time required for DOS disk access calls is taking up at least 80 percent of execution time, and search time is less than 20 percent of overall execution time. In fact, search time is probably a good deal less than 20 percent of the total, given that the overhead of loading the program, running through the C startup code, opening the file, executing printf(), and exiting the program and returning to the DOS shell are also included in my timings. Given which, it should be apparent why converting to assembly language isn't worth the trouble—the best we could do by speeding up the search is a 10 percent or so improvement, and that would require more than doubling the performance of code that already uses repeated string instructions to do most of the work.

Not likely.

Knowing When Assembly Is Pointless

So that's why we're not going to go to assembly language in this example—which is not to say it would never be worth converting the search engine in Listing 5.1 to assembly.

If, for example, your application will typically search buffers in which the first character of the search string occurs frequently as might be the case when searching a text buffer for a string starting with the space character an assembly implementation might be several times faster. Why? Because assembly code can switch from REPNZ SCASB to match the first character to REPZ CMPS to check the remaining characters in just a few instructions.

In contrast, Listing 5.1 must return from memchr(), set up parameters, and call memcmp() in order to do the same thing. Likewise, assembly can switch back to REPNZ SCASB after a non-match much more quickly than Listing 5.1. The switching overhead is high; when searching a file completely filled with the character z for the string "zy," Listing 5.1 takes almost 1/2 minute, or nearly an order of magnitude longer than when searching a file filled with normal text.

It might also be worth converting the search engine to assembly for searches performed entirely in memory; with the overhead of file access eliminated, improvements in search-engine performance would translate directly into significantly faster overall performance. One such application that would have much the same structure as Listing 5.1 would be searching through expanded memory buffers, and another would be searching through huge (segment-spanning) buffers.

And so we find, as we so often will, that optimization is definitely not a cut-and-dried matter, and that there is no such thing as a single "best" approach.

You must know what your application will typically do, and you must know whether you're more concerned with average or worst-case performance before you can decide how best to speed up your program—and, indeed, whether speeding it up is worth doing at all.

By the way, don't think that just because very large block sizes don't much improve performance, it wasn't worth using restartable blocks in Listing 5.1. Listing 5.1 runs more than three times more slowly with a block size of 32 bytes than with a block size of 4K, and any byte-by-byte approach would surely be slower still, due to the overhead of repeated calls to DOS and/or the C stream I/O library.

Restartable blocks do minimize the overhead of DOS file-access calls in Listing 5.1; it's just that there's no way to reduce that overhead to the point where it becomes worth attempting to further improve the performance of our relatively efficient search engine. Although the search engine is by no means fully optimized, it's nonetheless as fast as there's any reason for it to be, given the balance of performance among the components of this program.

Always Look Where Execution Is Going

I've explained two important lessons: Know when it's worth optimizing further, and use restartable blocks to process large data sets as a series of blocks, with each block handled at high speed. The first lesson is less obvious than it seems.

When I set out to write this chapter, I fully intended to write an assembly language version of Listing 5.1, and I expected the assembly version to be much faster. When I actually looked at where execution time was going (which I did by modifying the program to remove the calls to the read() function, but a code profiler could be used to do the same thing much more easily), I found that the best code in the world wouldn't make much difference.

When you try to speed up code, take a moment to identify the hot spots in your program so that you know where optimization is needed and whether it will make a significant difference before you invest your time.

As for restartable blocks: Here we tackled a considerably more complex application of restartable blocks than we did in Chapter 1—which turned out not to be so difficult after all. Don't let irregularities in the programming tasks you tackle, such as strings that span blocks, fluster you into settling for easy, general—and slow—solutions. Focus on making the inner loop—the code that handles each block—as efficient as possible, then structure the rest of your code to support the inner loop.

Programming with restartable blocks isn't easy, but when speed is an issue, using restartable blocks in the right places more than pays for itself with greatly improved performance. And when speed is not an issue, of course, or in code that's not time-critical, you wouldn't dream of wasting your time on optimization.

Would you?
